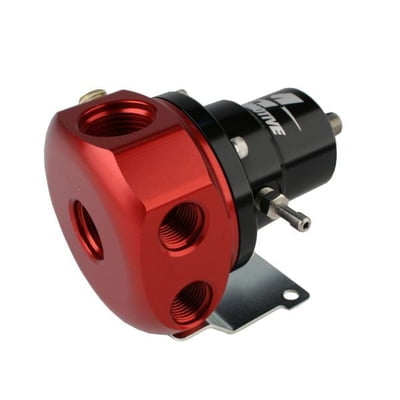

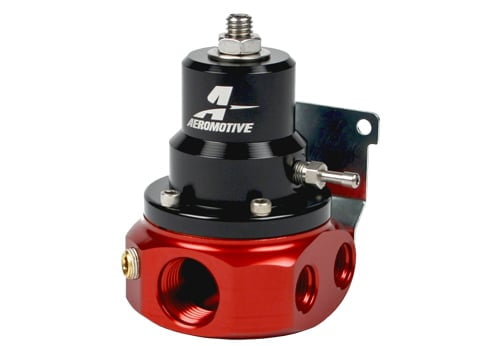

A1000 4-Port Carbureted Bypass Regulator, EFI Pump w/ Carb

A1000 carbureted bypass regulator, designed for using an EFI Pump w/ a carburetor

• Base fuel pressure adjustable from 3-15 PSI
• (1) #10 AN ORB inlet port and (1) #8 AN ORB return port
• (4) #6 AN ORB outlet ports
• 1/8" NPT gauge port
• Fuel pressure rises on a 1:1 ratio when referencing boost
• Bypass design provides the ultimate, dynamic fuel delivery system
• Ideal for converting from fuel injection to carburetion using the stock, in-tank pump
• EFI conversions will require a larger-than-stock return line for proper low pressure control
• Gasoline, E-85, and alcohol compatible
